Slimline box style 60 cm wide Chimney extractor hood DWB068J50B Brushed steel
£580.37
Key features
Electronic control via TouchControl
Design
Designed for wall mounted installation
60 cm wide
Brushed steel
Inner frame
Features
TouchControl with lightline
3 power levels and 2 intensive settings
Automatic intensive revert (6mins)
Automatic after running: 10 min
2 x LED lights
Softlight dimmer function
Florescent mood lighting

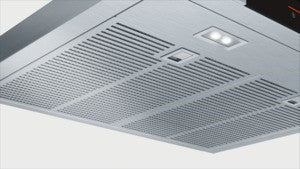

2 removable metal grease filter cassettes
Removable metal grease filters
Performance/technical information
Suitable for ducted or recirculating operation
Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 430 m³/h
Intensive 760 m³/h
Extraction rate exhaust air according to EN 61591:
max. normal use 430 m³/h, intensive 760 m³/h
Power rating: 166 W
Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 60 dB(A) re 1 pW (46 dB(A) re 20 µPa sound pressure)
Intensive: 72 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure)
Noise max. Normal Level: 60 dB*
Average Energy Consumption: 29.3 kWh/year*
Energy Efficiency Class: A+*
Blower Efficiency Class: A*
Lighting Efficiency Class: A*
Grease Filtering Efficiency Class: C*
Dimensions exhaust air (HxWxD): 628-954 x 600 x 500 mm
Dimensions recirculating (HxWxD): 628-1064 x 600 x 500 mm
Dimensions recirculating with CleanAir module (HxWxD): 809-1139 x 600 x 500 mm
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Light Intensity: 745 lux
Colour Temperature: 3500 K
Efficient BLDC-technology
Optional accessories
For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
* In accordance with the EU-Regulation No 65/2014
