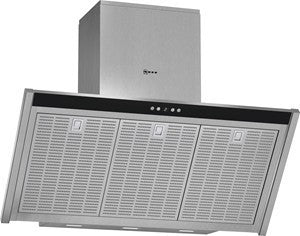

Chimney hood D39MH64N1B 90 cm wide
£609.50
Features
For wall mounted installation
7 segment LED display
3 x LED lights
softLight with dimmer function
3 metal grease filter cassettes
Saturation indicator for grease filter
metal grease filter
Interval operation
3 power levels and 2 intensive settings
(10 minutes)
Automatic intensive revert (6mins)
Additional noise insulation
Efficient BLDC-technology
Design
Stainless steel
Stainless steel with glass canopy
90 cm wide Chimney hood
Angled brand design
Soft touch control
Electronic controls
Light Colour: warm white
Performance/technical information
Suitable for ducted extraction and recirculation
For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
Twin channel high performance fan motor
In recirculation operation chimless use possible
Easy mounting system
Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 420 m³/h
Intensive 790 m³/h
Power rating: 169 W
Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 54 dB (A) re 1pW
Noise max. Normal Level: 54 dB*
Light Intensity: 779 lux
Colour Temperature: 3500 K
Electrical cable lenght 1.3 m
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Dimensions exhaust air (HxWxD): 853-1141 x 900 x 436 mm
Dimensions recirculating (HxWxD): 853-1251 x 900 x 436 mm
Dimensions recirculating with CleanAir module (HxWxD):
888 x 900 x 436 mm - mounting with outer chimney
1063-1351 x 900 x 436 mm - mounting with telescopic chimney
Energy Efficiency Class: A+*
Blower Efficiency Class: A*
Lighting Efficiency Class: A*
Grease Filtering Efficiency Class: C*
Average Energy Consumption: 30.3 kWh/year*
Optional accessories
Recirculating kit Z5102X1, Z5102X5, Z5170X1, Z5276X0, Z5906N1, Z5916N1
* In accordance with the EU-Regulation No 65/2014
